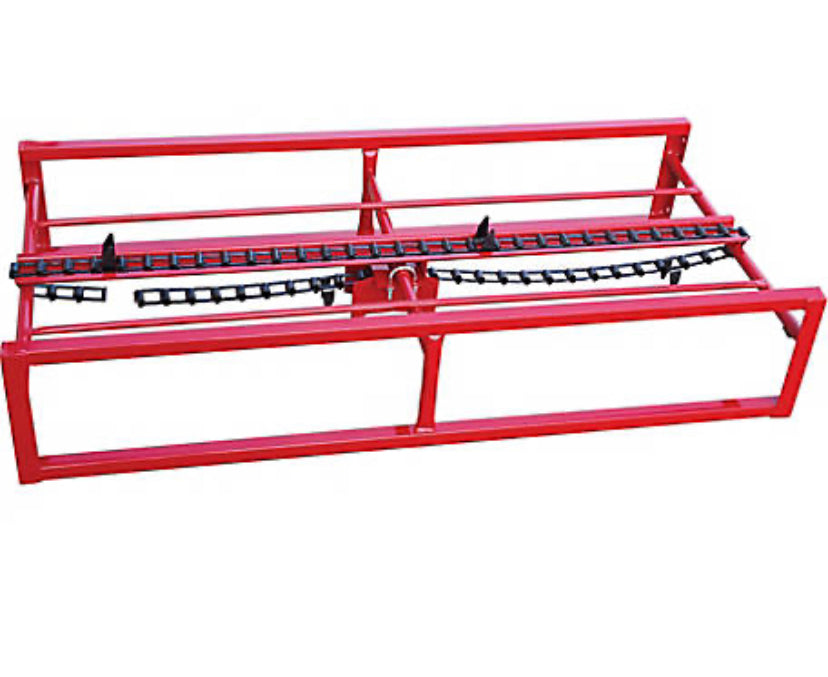

Bale Elevator Chain 55-120-HB4-8 - USA Made 16.30' Complete Assembly

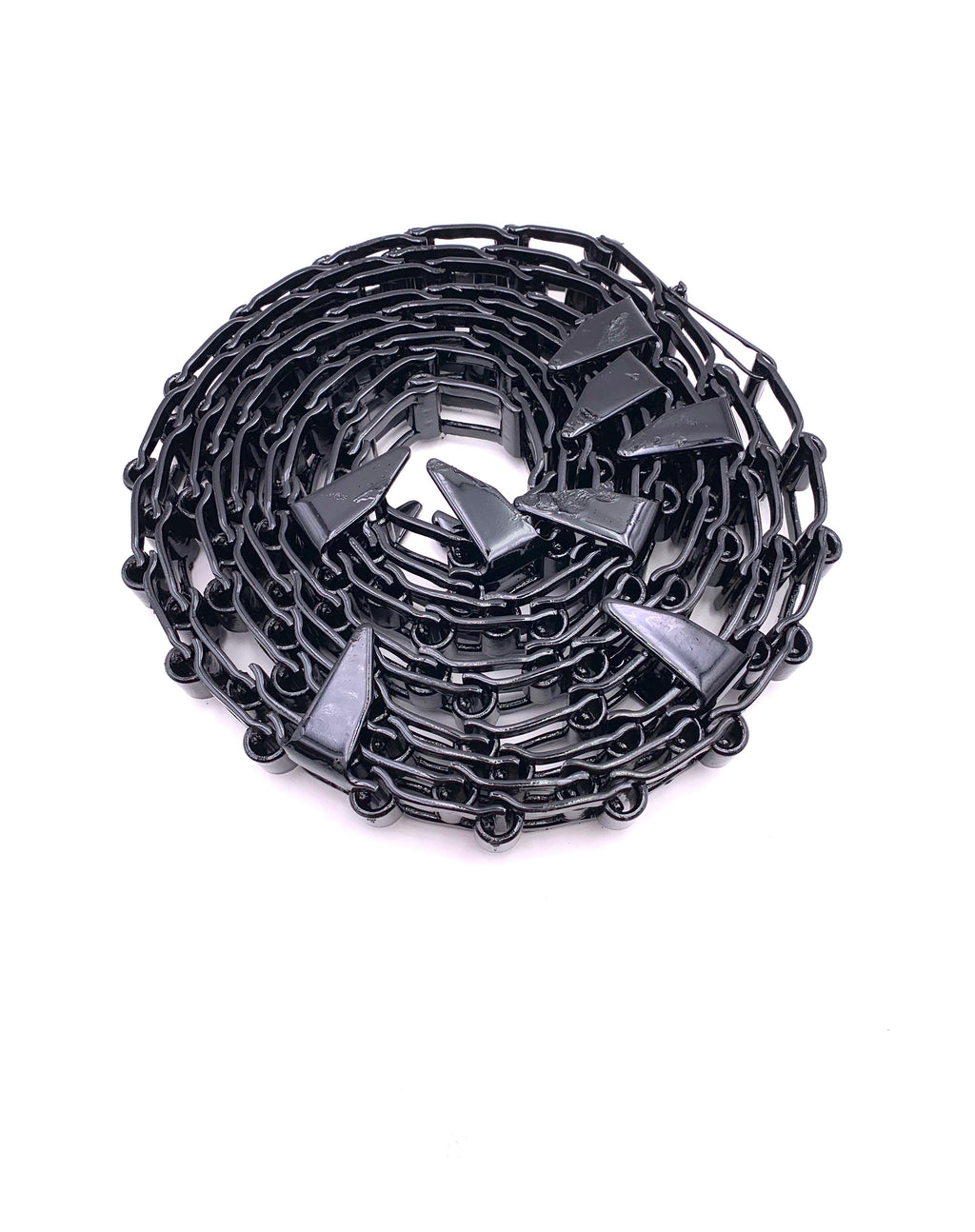

USA Made Bale Elevator Chain - Complete Assembly Ready to Install

Premium USA-manufactured bale elevator chain assembly featuring 55 steel detachable chain with 8 HB4 hay bale attachments. This complete 16.30' (16 feet 3.6 inches) assembly is ready to install on your bale elevator, saving you time and ensuring proper spacing and configuration.

Product Code Breakdown:

• 55: Size 55 steel detachable chain
• 120: Total of 120 links in the complete assembly
• HB4: Type of hay bale attachment (2-prong design)
• 8: Eight HB4 attachments evenly spaced throughout the chain

Complete Assembly Specifications:

• SKU: T0755
• Chain Size: 55 Steel Detachable
• Total Length: 16.30' (16 feet 3.6 inches)
• Total Links: 120 links
• Number of HB4 Attachments: 8 attachments
• Attachment Spacing: 24.5" (every 15th link)
• Attachment Type: HB4 (2-prong hay bale attachment)
• Material: Heat-treated cold rolled steel
• Chain Assembly Weight: 10.8 lbs
• Average Ultimate Strength: 2,800 lbs
• Made in USA
• Ready to install - no assembly required

Chain Dimensions:

• Pitch (P): 1.630"
• Dimension (M): 1.281"
• Dimension (E): 0.813"
• Dimension (D): 0.796"
• Dimension (T): 0.125"
• Tolerance on Thickness: +/- 0.006"

HB4 Attachment Dimensions:

• Dimension (E): 0.875"
• Dimension (F): 1.688"
• Dimension (H): 2.188"
• Dimension (T): 0.125"

Key Features:

• USA manufactured for superior quality and consistency
• Complete pre-assembled chain with attachments installed
• HB4 attachments properly spaced every 24.5" for optimal bale handling
• Special cold rolled steel heat-treated for maximum strength and durability
• Ready to install - saves installation time
• Exact replacement for worn or damaged bale elevator chains
• Compatible with standard bale elevator systems
• 2,800 lbs average ultimate strength for reliable performance

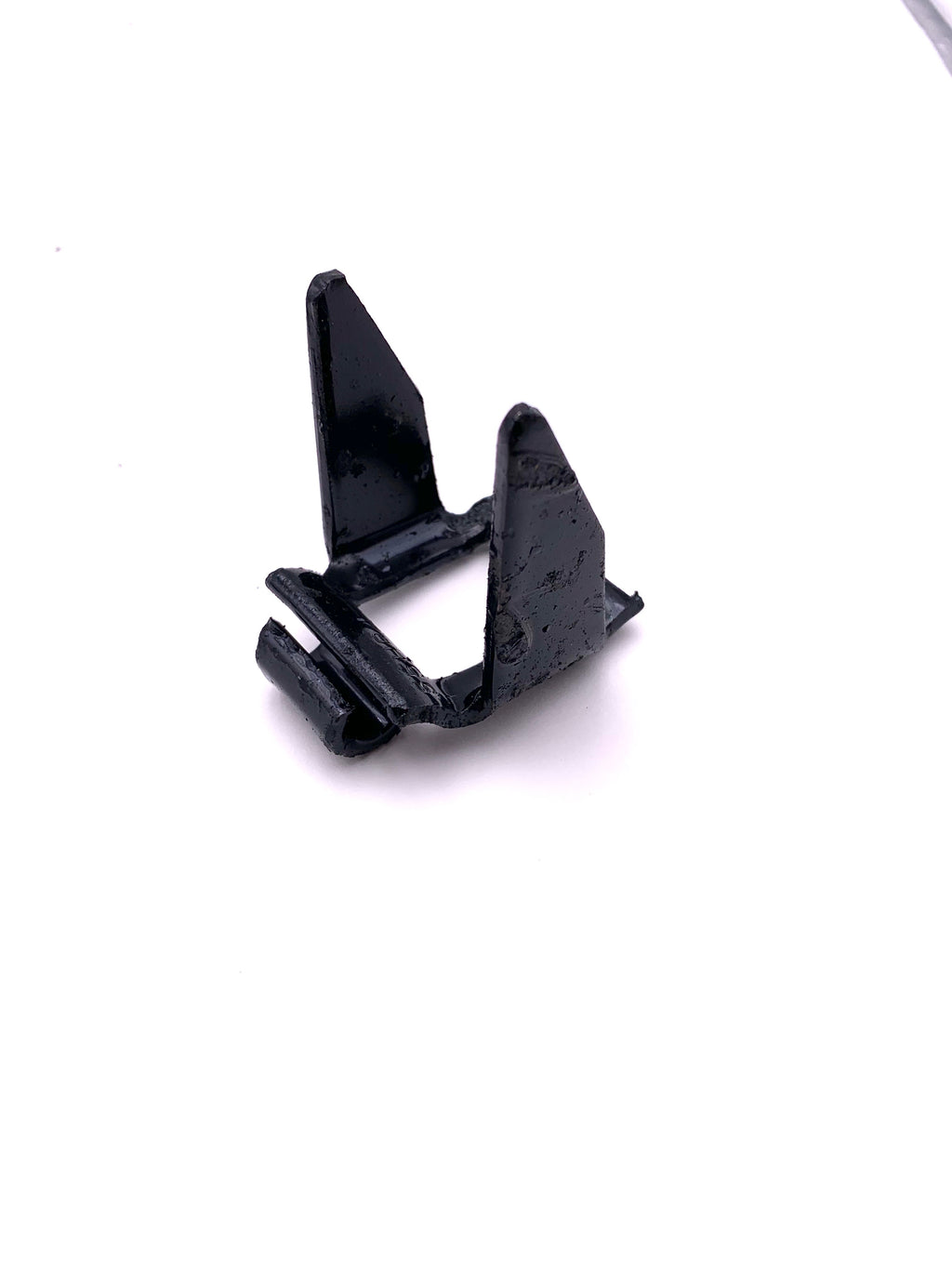

What is an HB4 Attachment?

HB4 attachments are specialized 2-prong hay bale grippers that attach to steel detachable chain for bale elevator applications. The two dull points grip and lift hay bales as the chain moves through the elevator system, providing secure bale handling from ground level to the loft or storage area.

Applications:

• Bale elevators and hay conveyors
• Barn loft bale handling systems
• Hay storage and stacking equipment
• Agricultural bale moving systems
• Replacement chain for existing bale elevators

Why Choose Pre-Assembled Bale Elevator Chain?

Pre-assembled bale elevator chains save you significant time and ensure proper attachment spacing. Instead of assembling individual chain links and installing attachments one by one, this complete assembly arrives ready to install. The HB4 attachments are factory-installed at the correct 24.5" intervals (every 15th link) for optimal bale handling performance.

Superior Construction

What separates this chain from others is that it's manufactured using special cold rolled steel that has been heat-treated for maximum strength and durability. This premium construction ensures long-lasting performance season after season, even under the demanding conditions of continuous bale handling.

Installation

This complete chain assembly installs just like replacing any bale elevator chain. Remove the old chain, install the new pre-assembled chain with the HB4 attachments properly positioned, and adjust tension according to your elevator specifications. The detachable chain design allows for easy installation without special tools.

Replacement for Worn Chains

If your bale elevator chain is worn, stretched, or has damaged attachments, this complete assembly provides an exact replacement. The 16.30' length with 120 links and 8 HB4 attachments spaced every 24.5" is a common configuration for many bale elevator systems.

55 Series Sprockets Available

We also stock 55 series sprockets to complete your bale elevator system or replacement project. Contact us for sprocket availability and specifications.

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems and bale elevator equipment. Need help verifying this is the right chain for your bale elevator or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're here to help you find the right solution.

Complete pre-assembled bale elevator chain - ready to install. USA made quality for reliable performance season after season.
